    CS800D PLUS

    Connect Systems

    MSRP:
    Now: $429.00
    (You save )
    (2 reviews) Write a Review
    SKU:
    CS800D PLUS
    Availability:
    If in stock, usually ships the same day if order received by noon, Pacific Standard Time. If not in stock usually ships from the manufacturer within 30 days. Shipping from the manufacturer is by air and the time is determined by the carriers.

    Add to Wish List
    • Create New Wish List

    Share This Article

    • Overview
    • Reviews

    Product Description

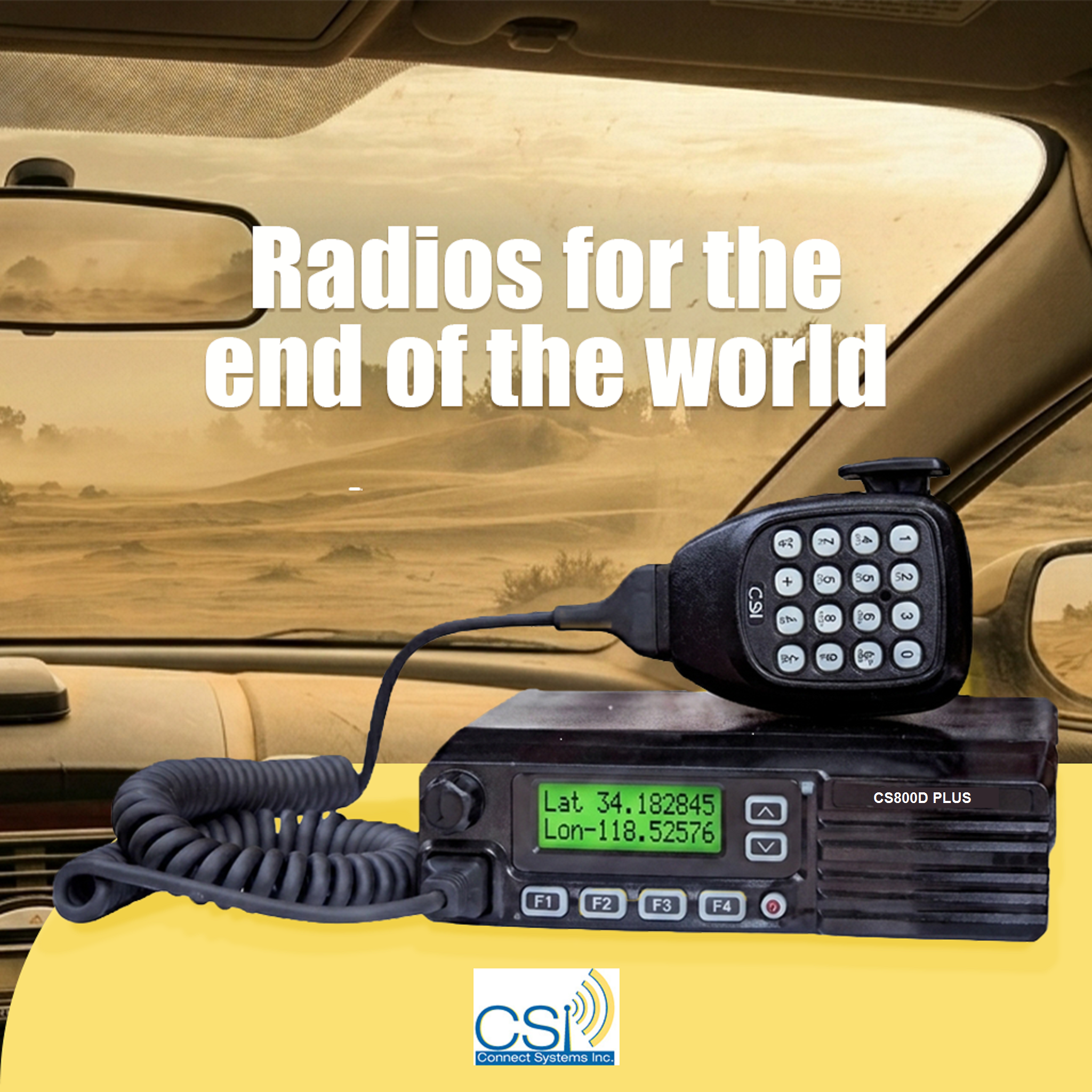

                                    CS800D PLUS

    Includes the radio, programming cable set and GPS Module

    Imagine a radio that has the storage capacity of 520,000 contacts and 64,000 channels.

    Imagine a radio that has the ability to do DMR, FUSION, DSTAR, P25 and NXDN.

    Imagine a radio that can make its own code plug by analyzing the signals being transmitted.

    Imagine a radio that knows where all the repeaters are and knows where you are and able to use that information to make a code plug on the fly.

    Imagine a radio where you can program most of the parameters in the radio without a computer and without having to go through a complicated procedure to generate a new channel or edit the existing channel.

    Imagine a radio where you can transmit beyond line of site without an internet connection.

    Imagine a radio where you can seamlessly add a co-processor or your laptop to allow you to add digital modes not currently in the radio.

    Imagine a radio where you can add new features to the radio without the manufacture's cooperation.

    Imagine a radio that can connect to the internet without a hot spot.

    This and more is the future of digital radios and what the CS800D PLUS will become.

    The hardware of the CS800D PLUS is a CS800D with more memory, a GPS module and a few minor changes to the PCB. The key to some of the advanced features is the ability to tightly integrate a separate computer into this radio. This will allow much of the wisdom of the ham community to be integrated into this radio without having to design new hardware.

    When you buy the CS800D PLUS you get the final hardware. The firmware will be done in stages over a period of many months. Some of the firmware will be done by the Amateur community.

    When you first get the CS800D PLUS, you will get Firmware that will do DMR and Analog exactly like the standard CS800D.

    The next step will be to remove all the commercial features in both the radio and the CPS and expand the database to accommodate the final product. We will have links for most of the features but not the actual features themselves.

    Then we start implementing the new features one at a time.

    To accommodate the visually impaired and the ability to use many of these features without taking your eyes off the road, extensive use of voice prompts will be used.

    How do we accommodate other digital modes?
    The radio currently can only communicate using DMR and Analog. This section is going to show how we can extend it to also communicate using NXDN, FUSION, P25 and DSTAR.

    NXDN, FUSION and P25 uses the same AMBE vocoder used with the DMR. DSTAR used a similar but different vocoder so the external computer will have to handle that vocoder. The patent for that vocoder has long expired so there should be no legal issues in using the technology.

    The basis for this technique is to have certain functions that the radio can do, be done by the radio and other things are done by an external computer attached to the serial port of the radio.

    The serial port is going to be time shared by two separate data streams as will be explained below.

    Receive Mode
    In this mode, the raw data is passed from the radio’s receiver at 8,000 samples per second using the A/D converter already built into the radio and used for DMR communication. At the same time, audio data is passed back to the radio using AMBE packets which then gets decoded by the AMBE Decoder in the radio which in turns goes to the speaker.

    In this mode, the external computer will decode the raw data and pass the compressed digital data to the vocoder on the radio if using NXDN, Fusion and P25. If using DSTAR, the vocoder will be on the external computer and send the raw voice audio to the D/A converter of the radio.

    Transmit Mode
    In this mode, if used for NXDN, Fusion or P25, the radio passes microphone audio that has been processed by the AMBE encoder. If used for DSTAR, the radio passes raw audio data that then gets compressed using the DSTAR encoder on the external computer. The external computer then takes this voice data, puts it in packets, and modulates the radio by sending packets to the D/A converter on the radio.

    The External Computer
    The external computer can be as simple as a single chip micro connected the DB15, a Raspberry Pi computer, or a standard PC. The key to this enhancement is the fact that the amateur community has already done most of the work already.

    Why Should you buy the radio now?
    The manufacturer has committed to this project. The manufacturer also is doing other project for other companies. If the manufacturer sees that this radio is going to be a good seller, the manufacturer is more likely to give this priority compared to other projects.

    The cost of the radio has gone up recently and there is no reason why the trend is not going to continue. If the manufacturer wants to get microprocessors and other parts, he has to pay a premium for those parts and he passes on the increased cost to Connect Systems. By buying the radio now, you are locking in your cost





    Product Videos

    Custom Field

    Product Reviews

    Write a Review

    Write a Review

    ×
    CS800D PLUS
    Connect Systems
    CS800D PLUS

    2 Reviews Hide Reviews Show Reviews

    • 5
      Happy With This Unit

      Posted by Matthew Foutch on Sep 5th 2022

      Using this unit as a two for one base station covering Analog and DMR in my area. Powered right up and connected to Windows 10 PC without issue. The unit came pre-loaded with the latest firmware. It receives and talks great. Signal report: "Loud and clear". Well done. Thanks!

    • 4
      cs800d+

      Posted by John on Jul 12th 2022

      Good radio works as expected

    ×
